Independence Keel and Rigging Kit
$225.00
Keel and Rigging parts for the Independence  R/C sailboat model
Description
This kit contains the parts necessary to complete the Independence kit supplied by Chesapeake Light Craft, including the lead keel, rigging and sail parts. for a detailed parts list scroll down. I have cast the lead keel myself, and contracted out waterjet cut rigging parts. I have also collected some screws, wire a pulley and odd bits to get you going. You will need to purchase the Radio control unit and sail servos separately.
Ships via USPS Priority “medium” flat rate box.

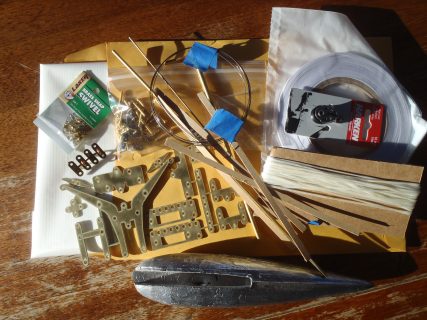

| Independence Rigging Part Kit Contents | ||
| Part | part description | number |
| keel | 6 pounds cast lead | 1 |
| bow block | Harken micro block 432 | 1 |
| Water-jet cut parts | custom brass fittings | 1 |
| round head screws | 3/8″ #2 brass | 40 |
| round head screws | 3/4″ #4 | 1 |
| nut | 4-40 NC | 8 |
| Brass hook | custom made | 1 |
| Brass escutcheon pin | 1/16″x 1″ | 2 |
| machine screw | 3/4″ 4-40NC | 8 |
| snap swivel | bass pro    BPS612 | 1 |
| rudder post | 3/16 brass | 1 |
| rudder tube | 3/16id brass tubing | 1 |
| sail cloth | Â 36″x60″ 3/4 oz | 1 |
| basting tape | roll | 1 |
| 1/32″ plywood batten | Â 1/4″ wide by 6 inches long | 3 |
| 30′ nylon rigging line | Â 100 pound test | 1 |
| stainless rigging wire | Â 6 foot coil | Â 1 |
| 1/8″ brass tubing | 1 foot | Â 1 |
| 1/16″ rod | 1 foot | Â 1 |
Additional information
| Weight | 9 lbs |
|---|---|
| Dimensions | 8 × 8 × 4 in |
